FIFO Generator (First Word Fall Thru FIFO)

by Ganghyeok
1.9K views

[1] Project

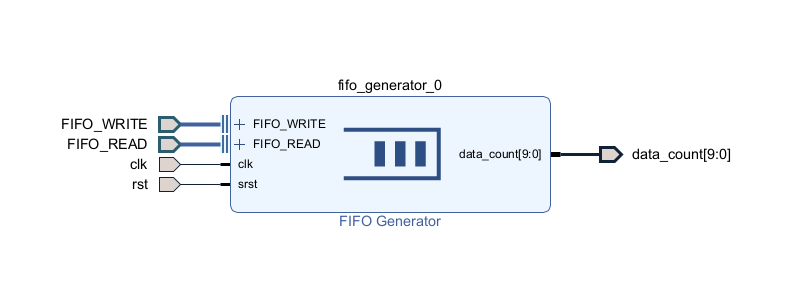

1. Block Design of FIFO Generator Project

2. IP Configuration

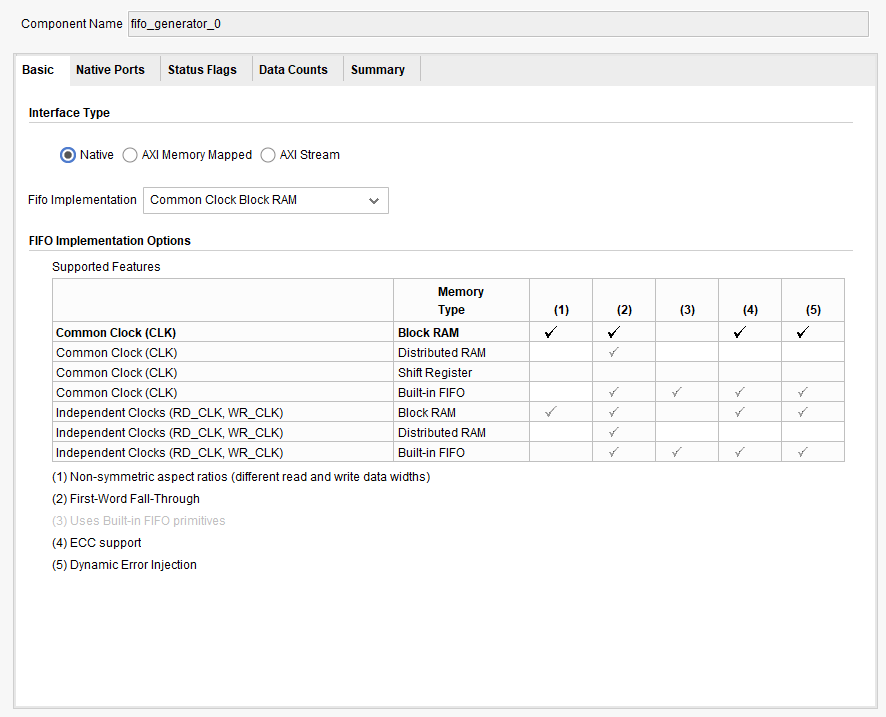

(1) Basic

  • FIFO Implementation ⇨ Common Clock Block RAM
    1. FIFO read/write operations are performed in the same clock domain.
    2. FIFO is implemented using the Block RAM resources inside the FPGA.

(2) Native Ports

  • FIFO Read Mode ⇨ First Word Fall Through
    – The first data in the FIFO appears on the FIFO Read Data output even if the Read Enable signal is not set.
  • Data Port Parameters
    1. Write Width ⇨ 8
      Sets the write unit of the FIFO to 8 bits.
    2. Write Depth ⇨ 1024
      Configures the FIFO to store up the 1024 entries of 8-bit data (8 x 1024)
    3. Read Width ⇨ 8
      Sets the read unit of the FIFO to 8 bits.

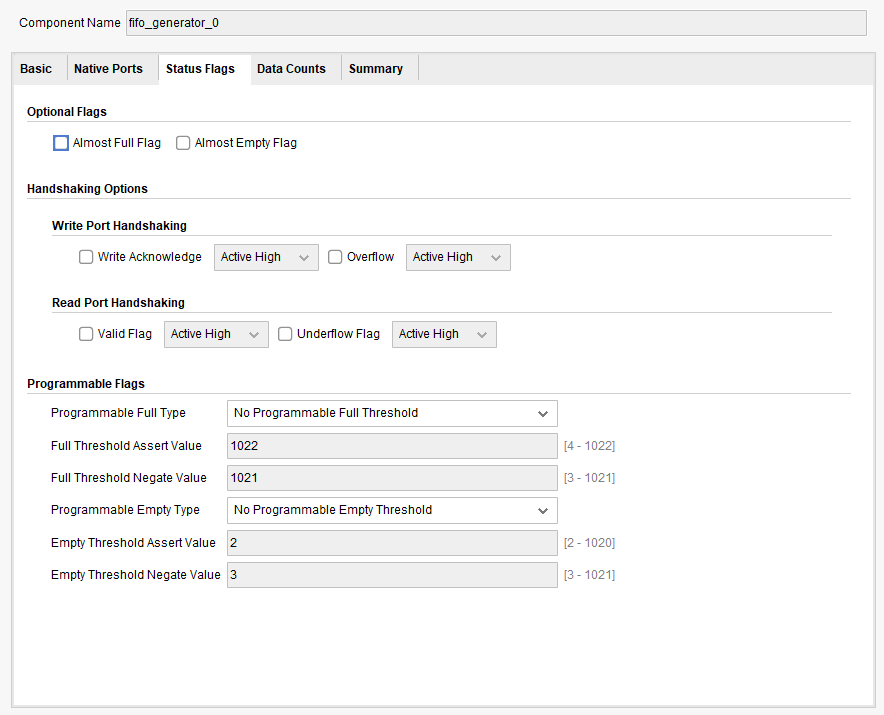

(3) Status Flags

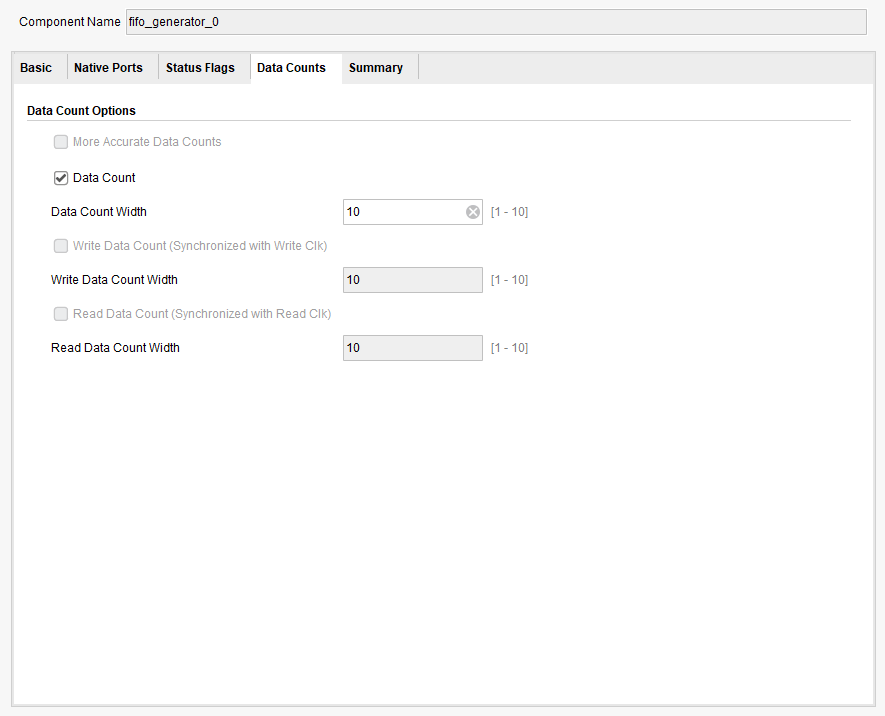

(4) Data Counts

  • Data Count
    – Currently, the number of data entries stored in the FIFO can be checked.

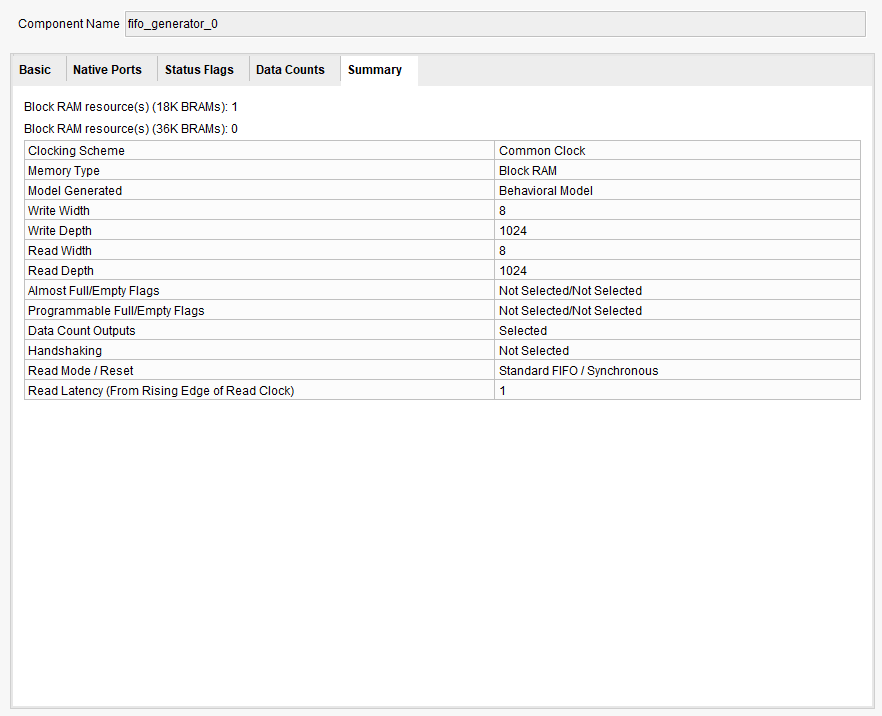

(5) Summary

In the figure above, the Read mode is First Word Fall Through, not Standard FIFO.

[2] Module & TestBench

1. Top module

Top_module_FWFT

2. TestBench

TestBench_FWFT
  1. @(posedge clk)
    @(posedge clk) is a statement used to wait for the rising edge of the clock signal clk.
    For important considerations when using this statement, refer to the following link: Link.
  2. Clock Synchronization in Testbench
    When designing RTL with flip-flops synchronized to a clock, non-blocking assignment (<=) is used.
    Similarly, in a testbench, when providing clock-synchronized inputs to the DUT, non-blocking assignments should be used to ensure the inputs are synchronized with the clock.
    If inputs are assigned using blocking assignments (=), Vivado Simulation will interpret them as level signals that are asynchronous to the clock.

[3] Simulation

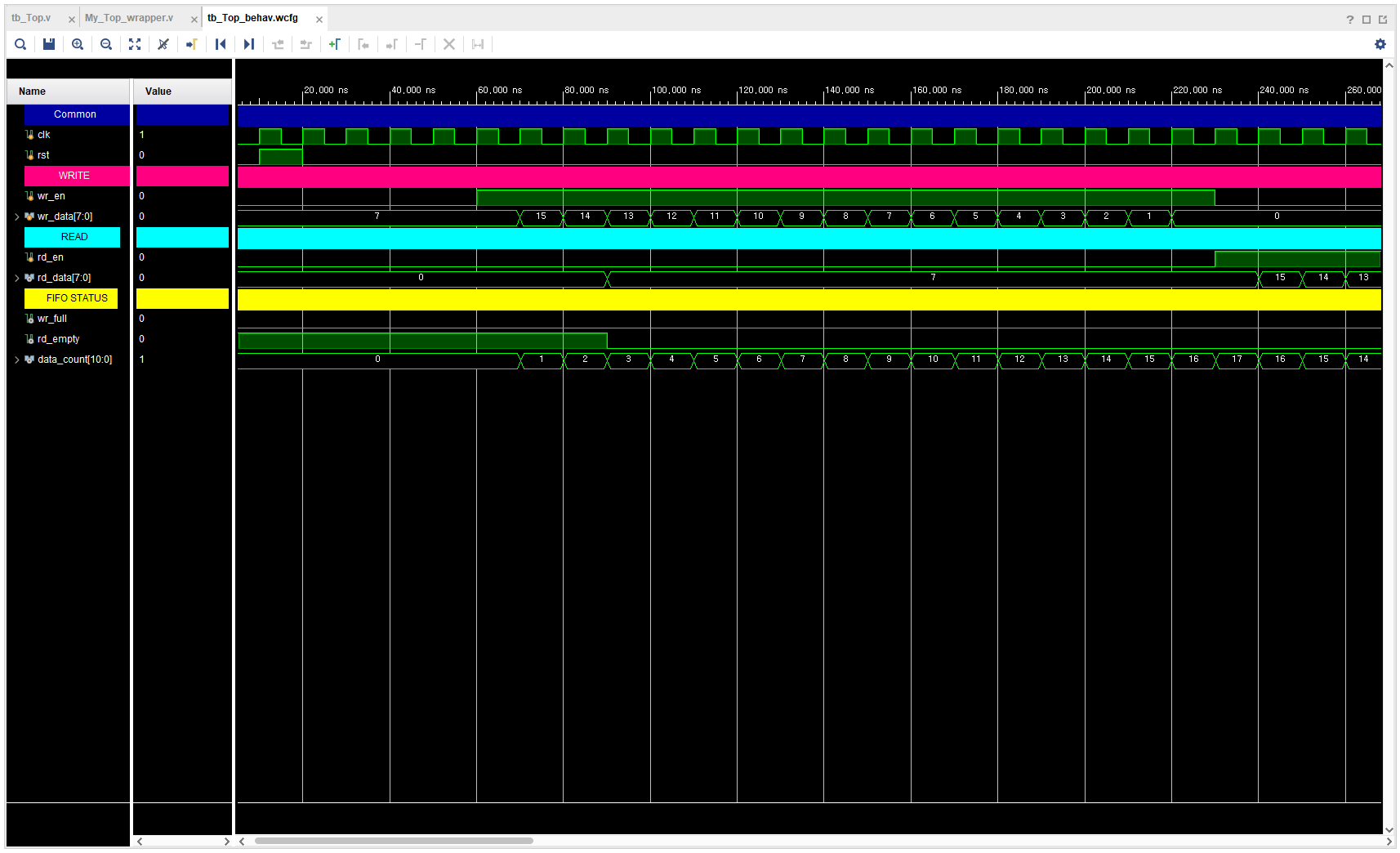

1. Simulation Waveform

Using the FIFO Generator IP, an FWFT (First Word Fall Through) FIFO was created.

The following describes the operational characteristics of the FWFT FIFO:

  1. The first Write Data, 7, is written to the FIFO.
  2. At the 70 ns mark, the FIFO captures and stores the value 7.
  3. After two clock cycles, at the 90 ns mark, the value 7 is output on the Read Data port.

By using the FWFT FIFO, downstream IPs can access the first data in the FIFO without performing a separate FIFO Read operation.
