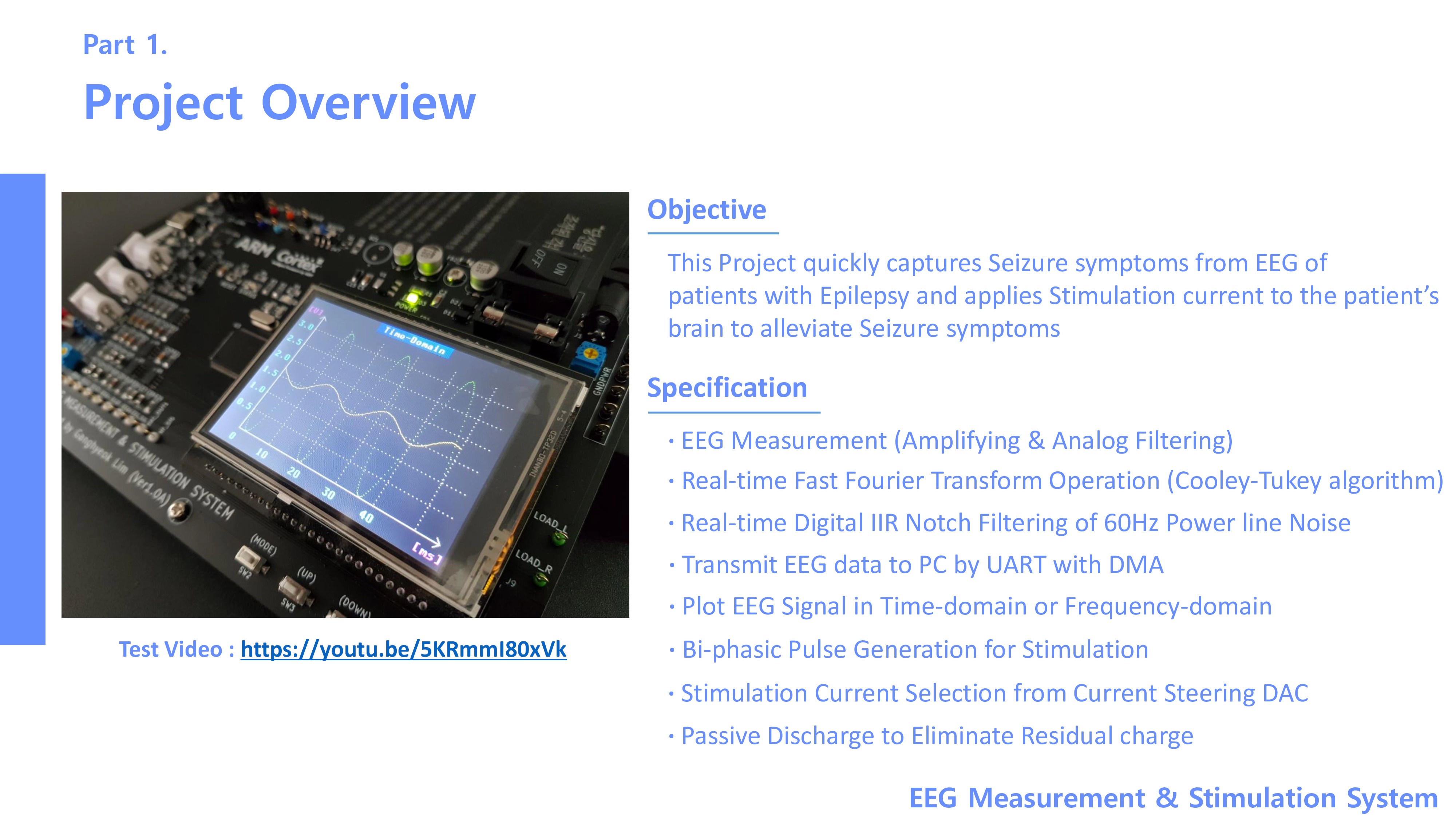

This Project quickly captures Seizure symptoms from EEG of patients with Epilepsy and applies Stimulation current to the patient’s brain to alleviate Seizure symptoms.
ㅤ
[2] Specification
EEG Measurement (Amplifying & Analog Filtering)
Real-time Fast Fourier Transform Operation (Cooley-Tukey algorithm)
Real-time Digital IIR Notch Filtering of 60Hz Power line Noise
Transmit EEG data to PC by UART with DMA

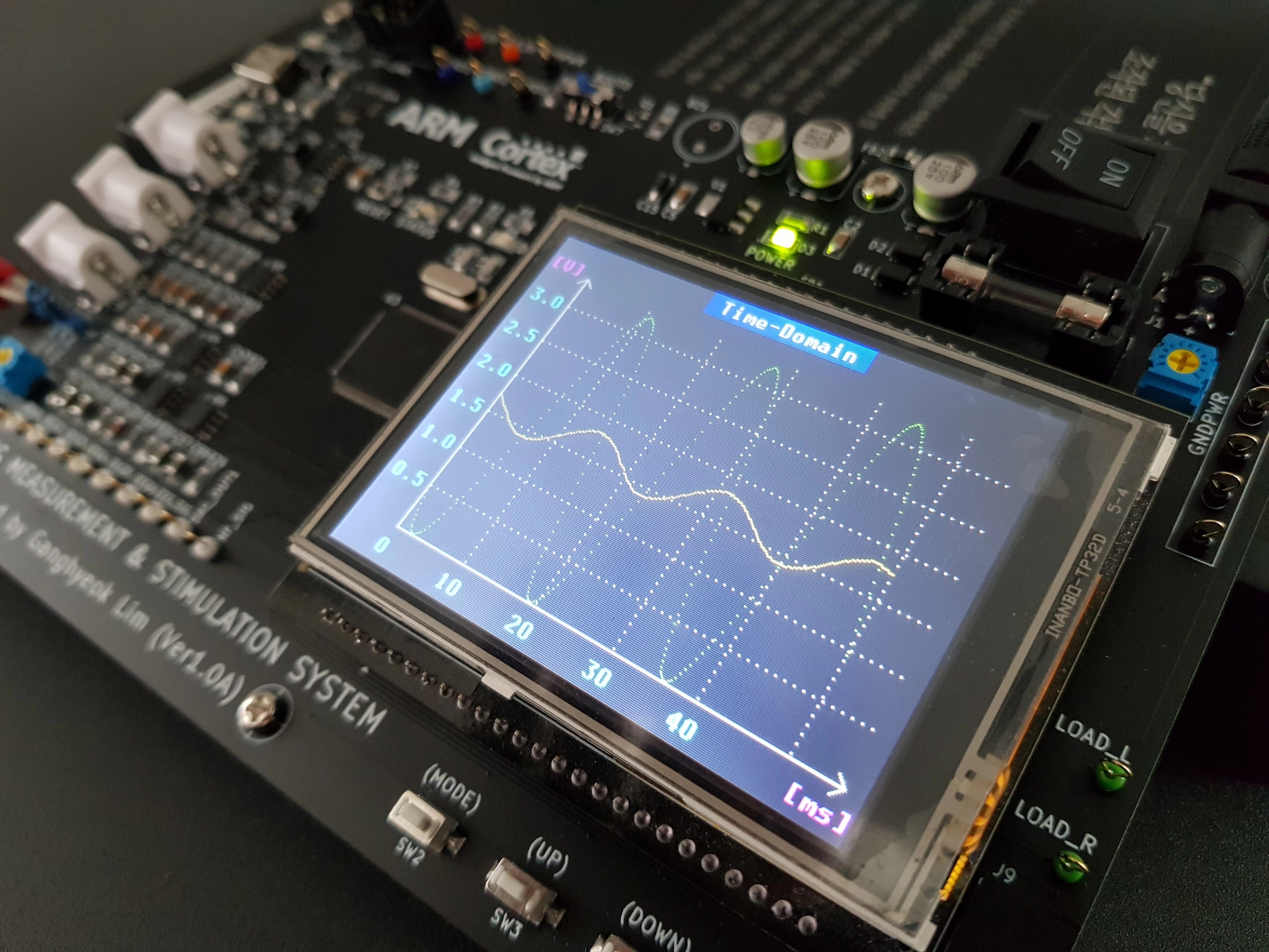

Plot EEG Signal in Time-domain or Frequency-domain
Bi-phasic Pulse Generation for Stimulation
Stimulation Current Selection from Current Steering DAC
Passive Discharge to Eliminate Residual charge

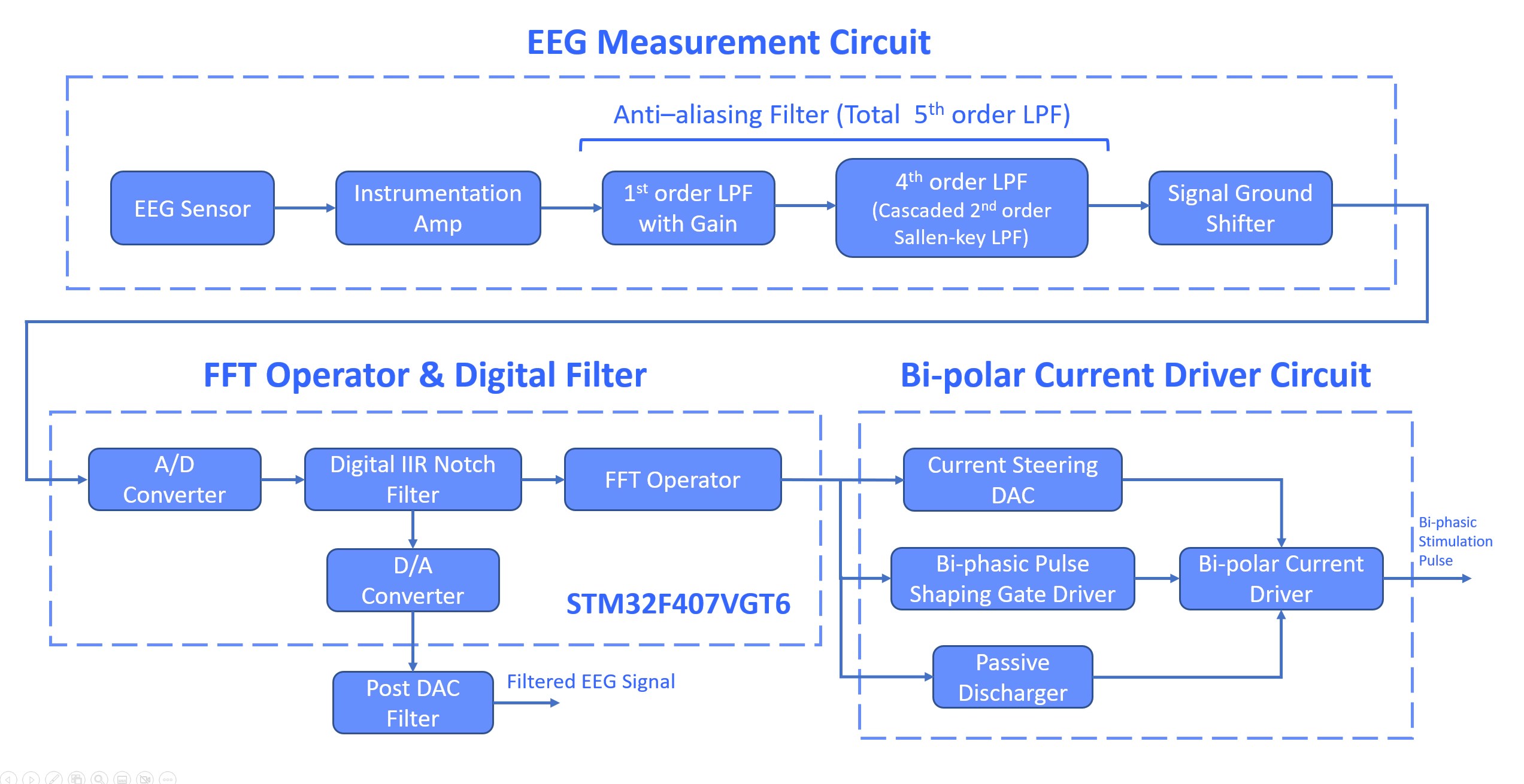

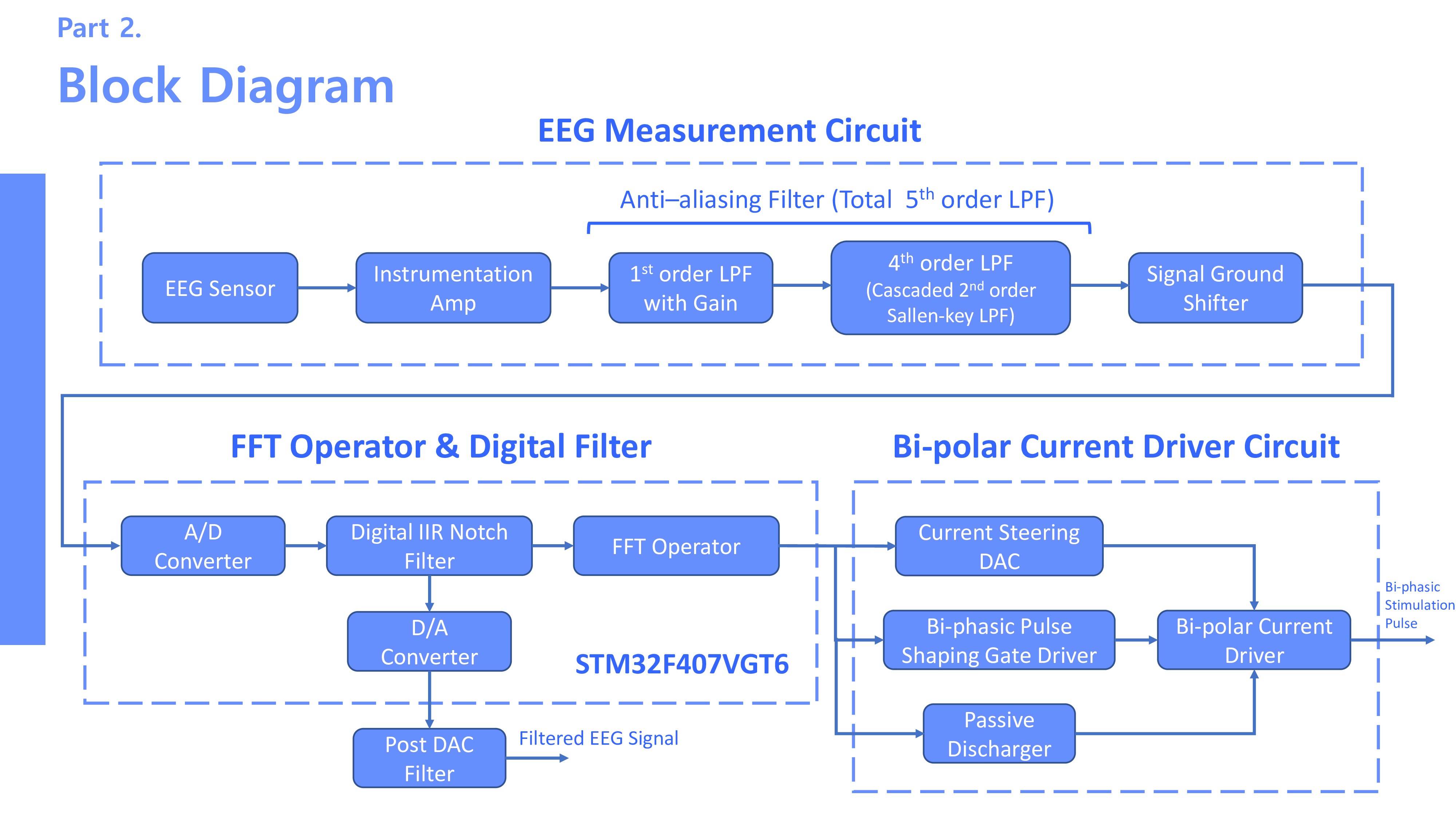

1. Block Diagram of EEG Measurement & Stimulation System

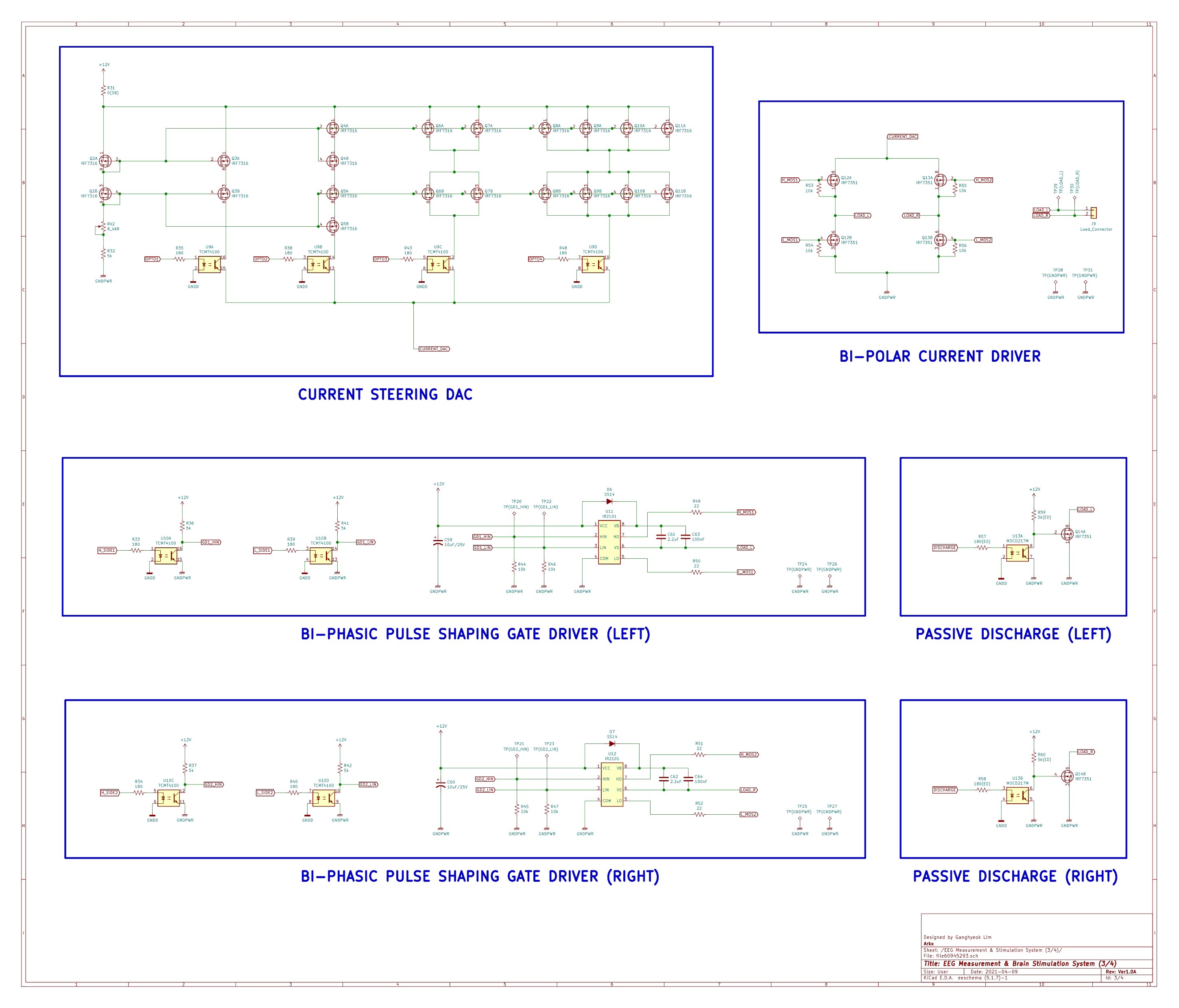

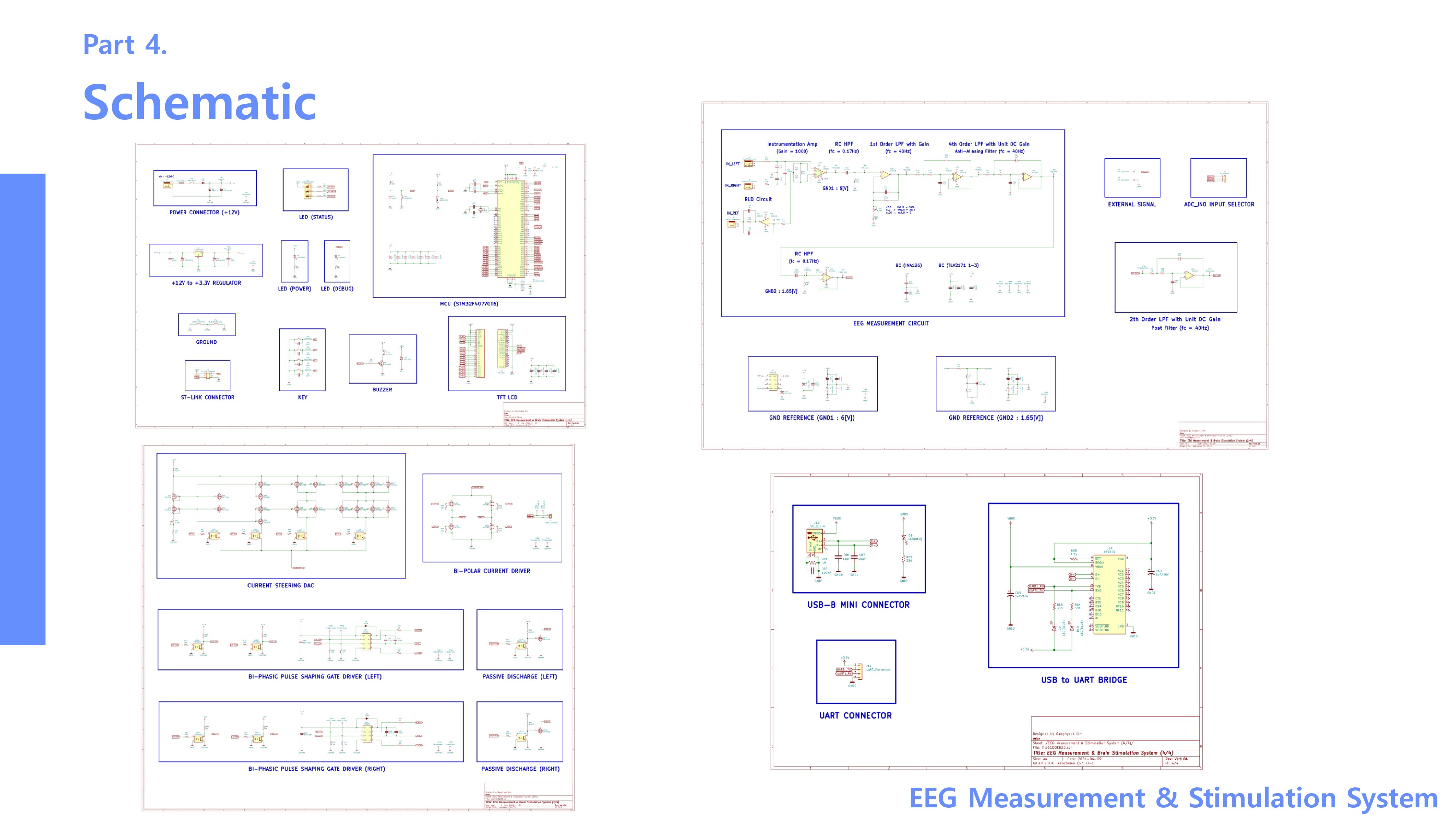

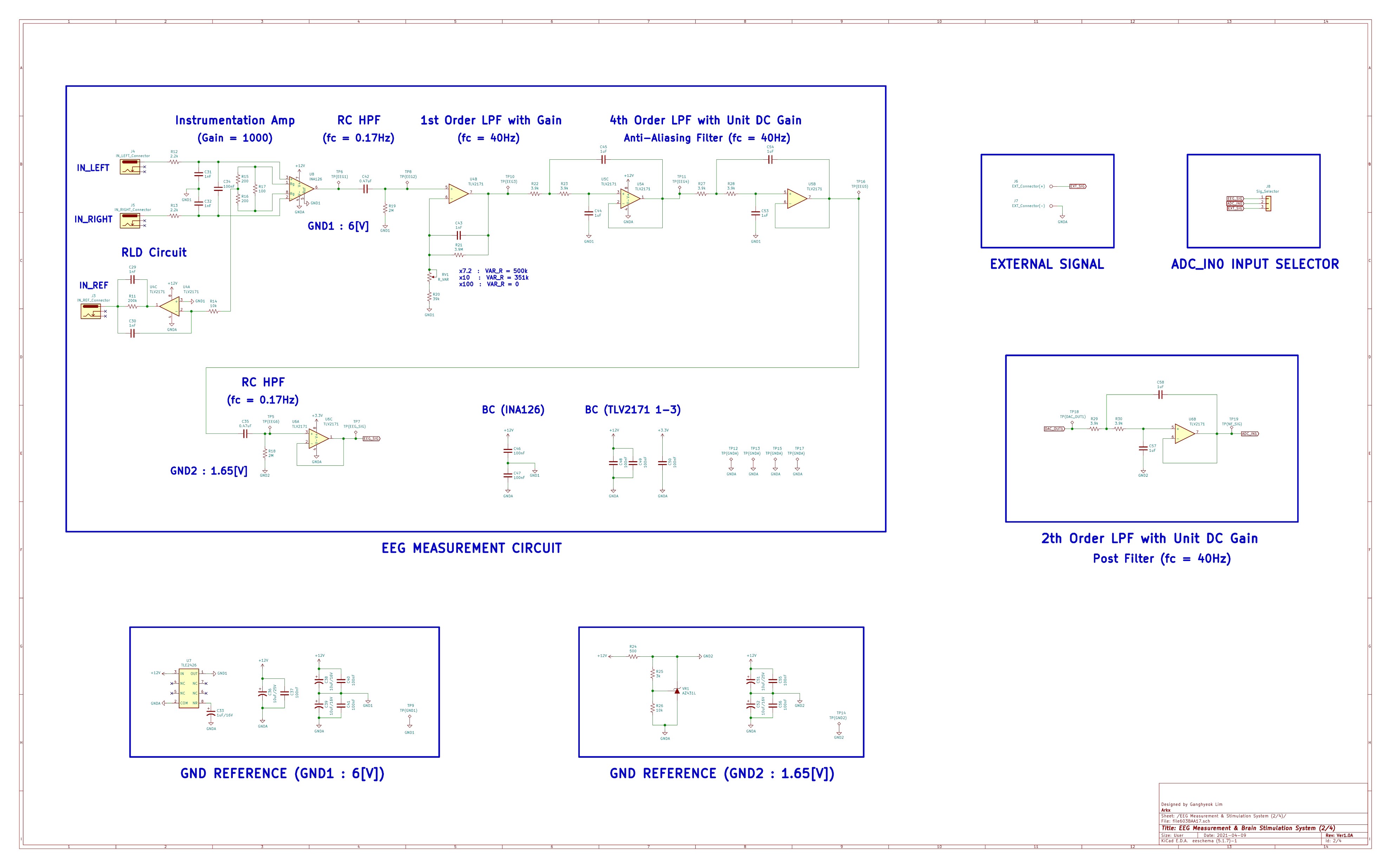

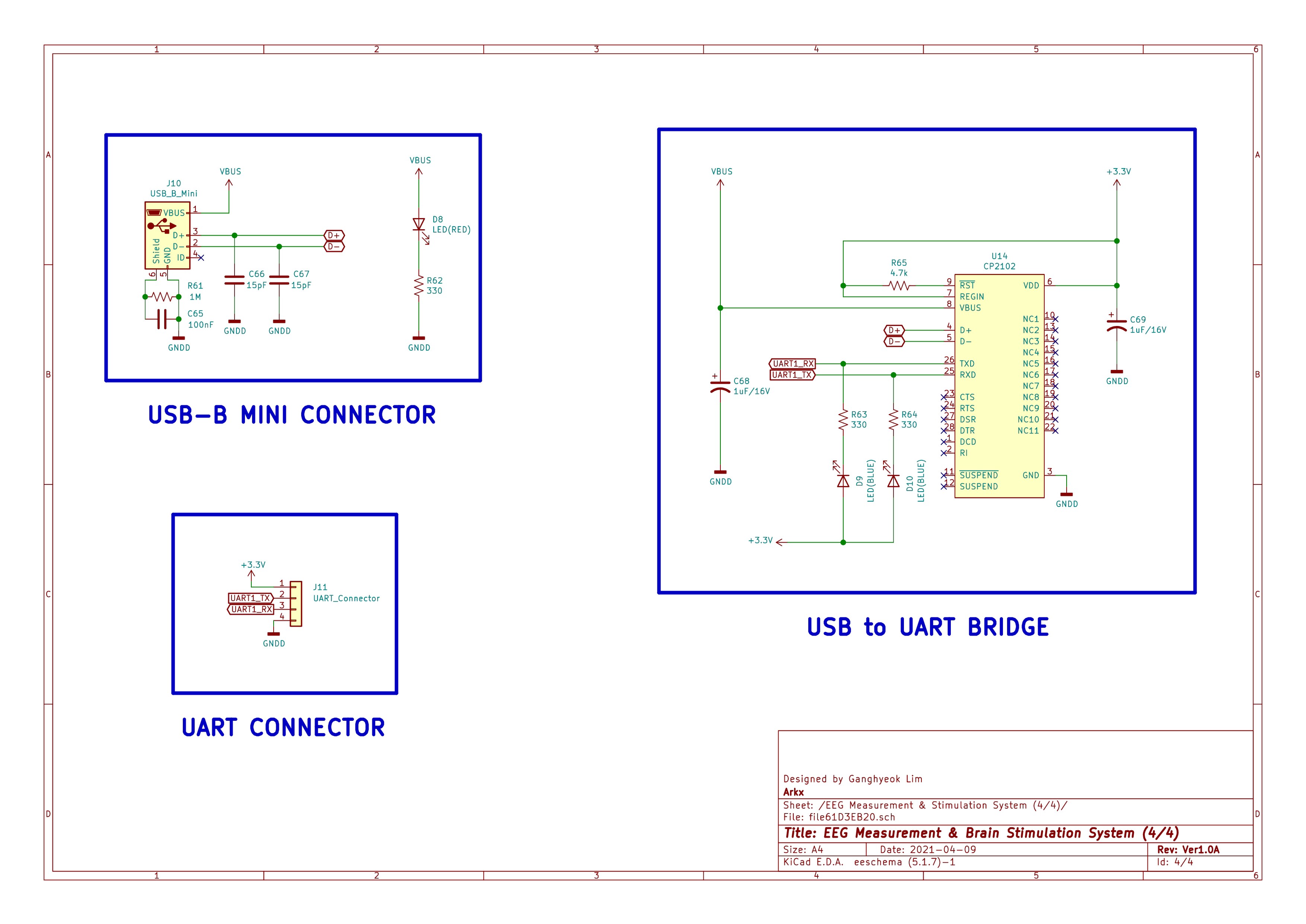

2. Schematic of EEG Measurement & Stimulation System

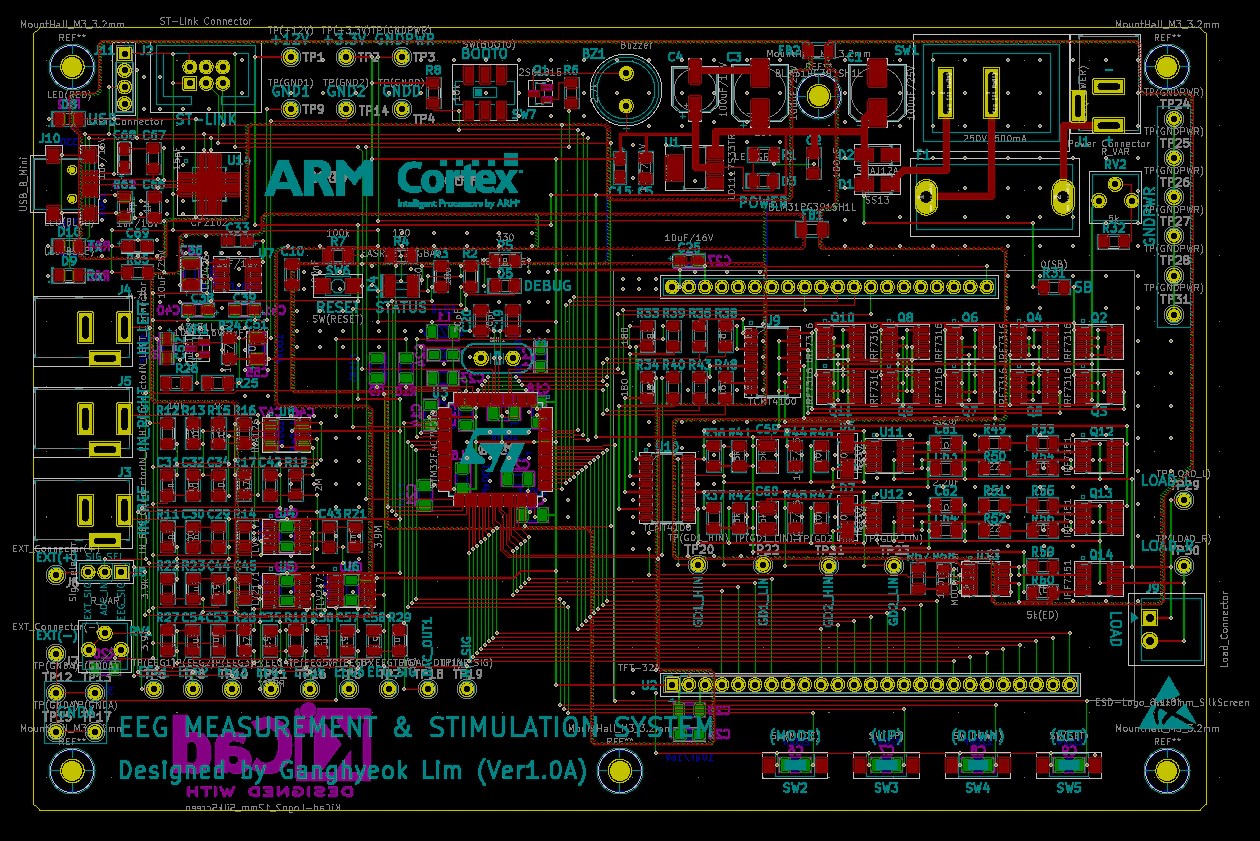

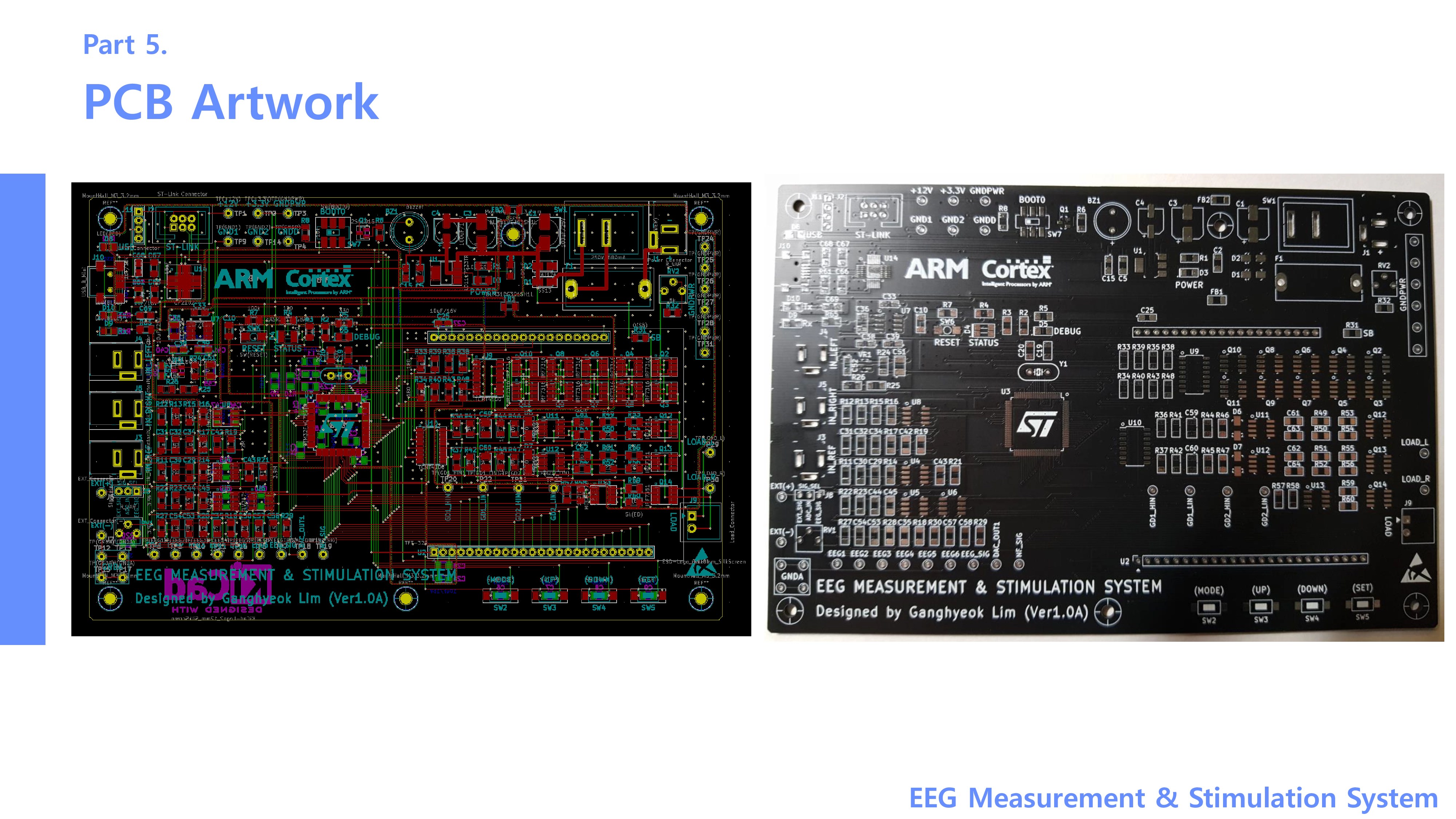

3. PCB Artwork of EEG Measurement & Stimulation System
4. Detailed Description of EEG Measurement &
Stimulation System
[1] Anti-aliasing Filter & Filtered EEG Signal

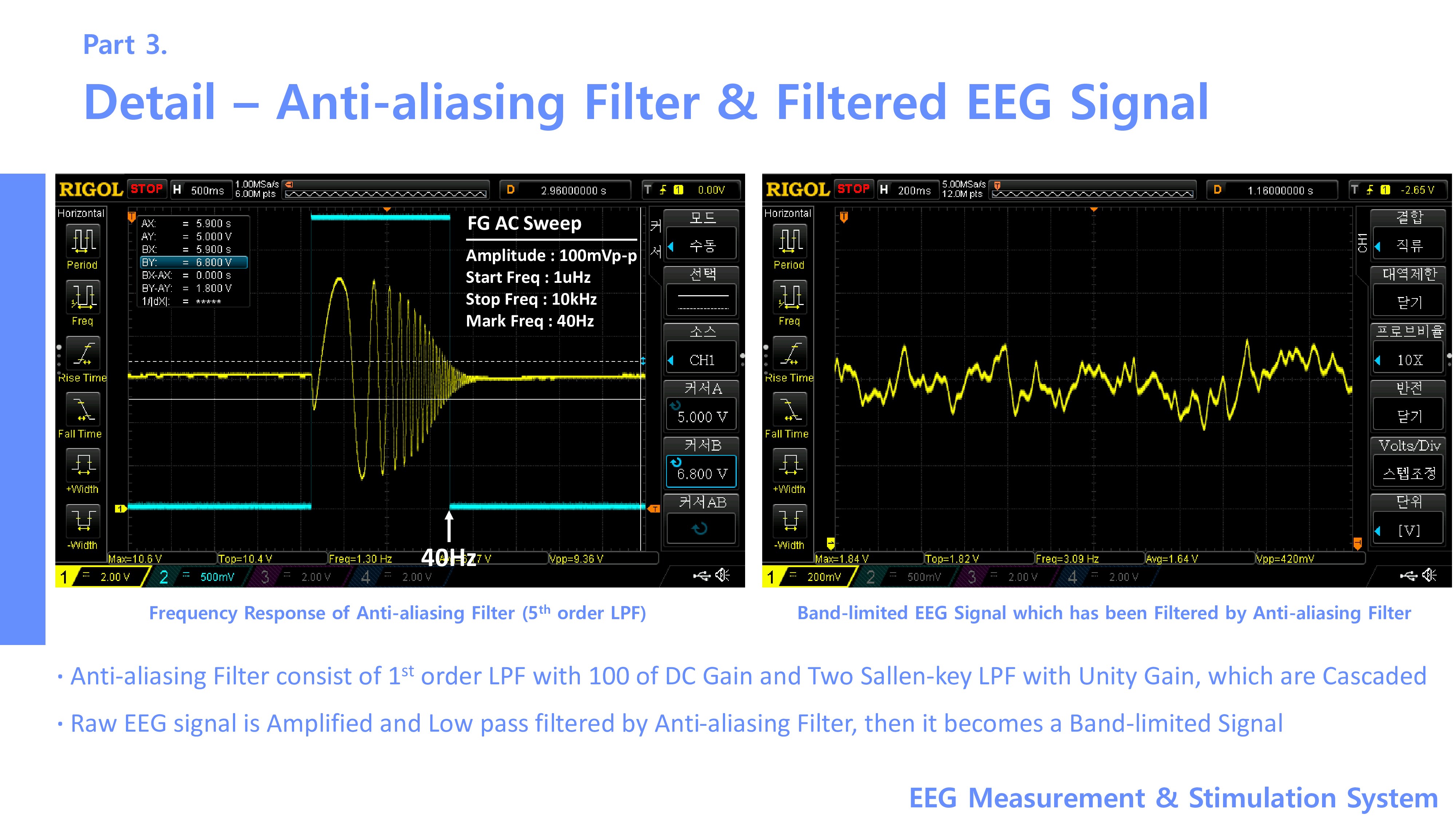

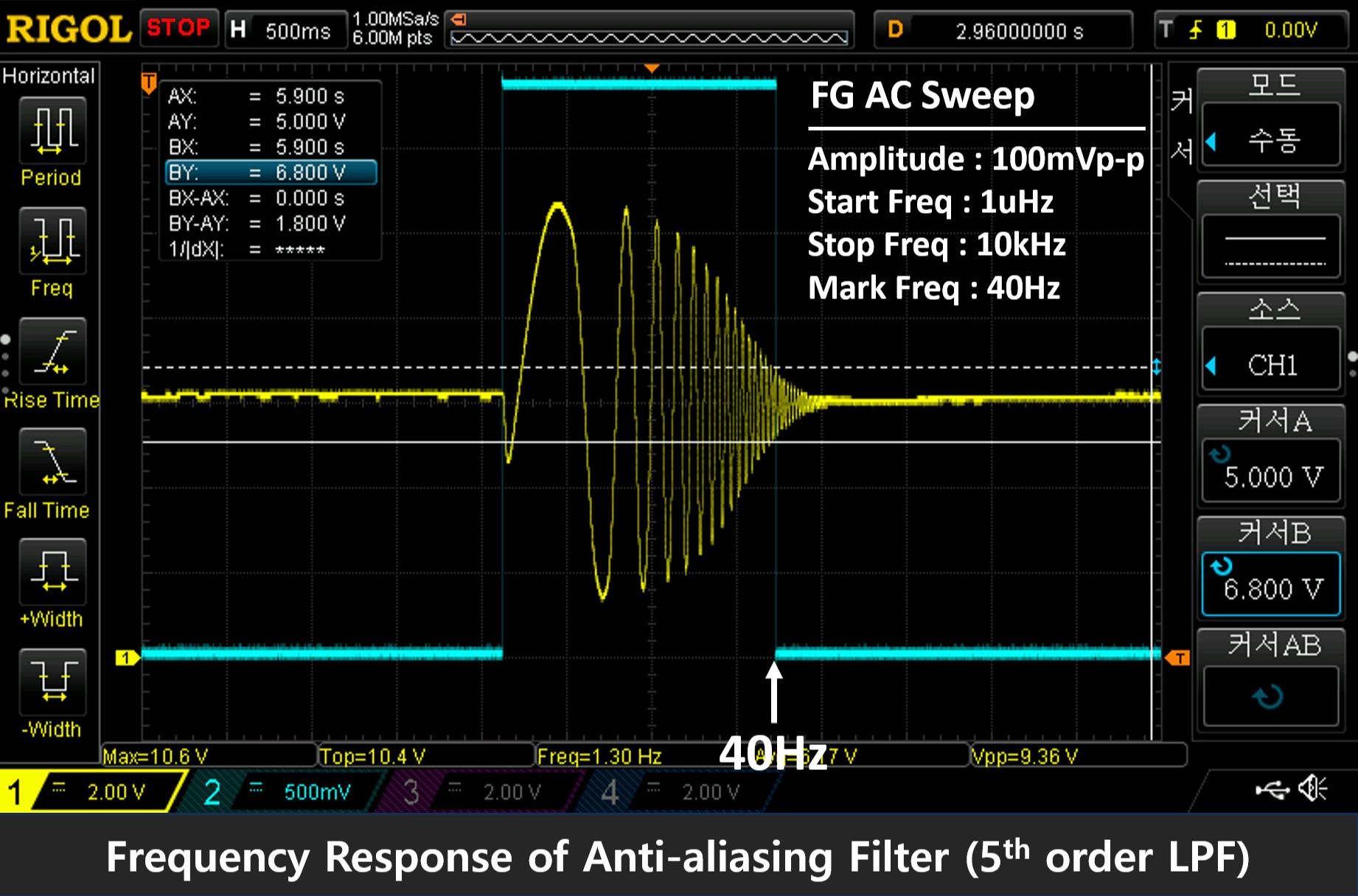

Anti-aliasing Filter consist of 1st order LPF with 100 of DC Gain and Two Sallen-key LPF with Unity Gain, which are Cascaded

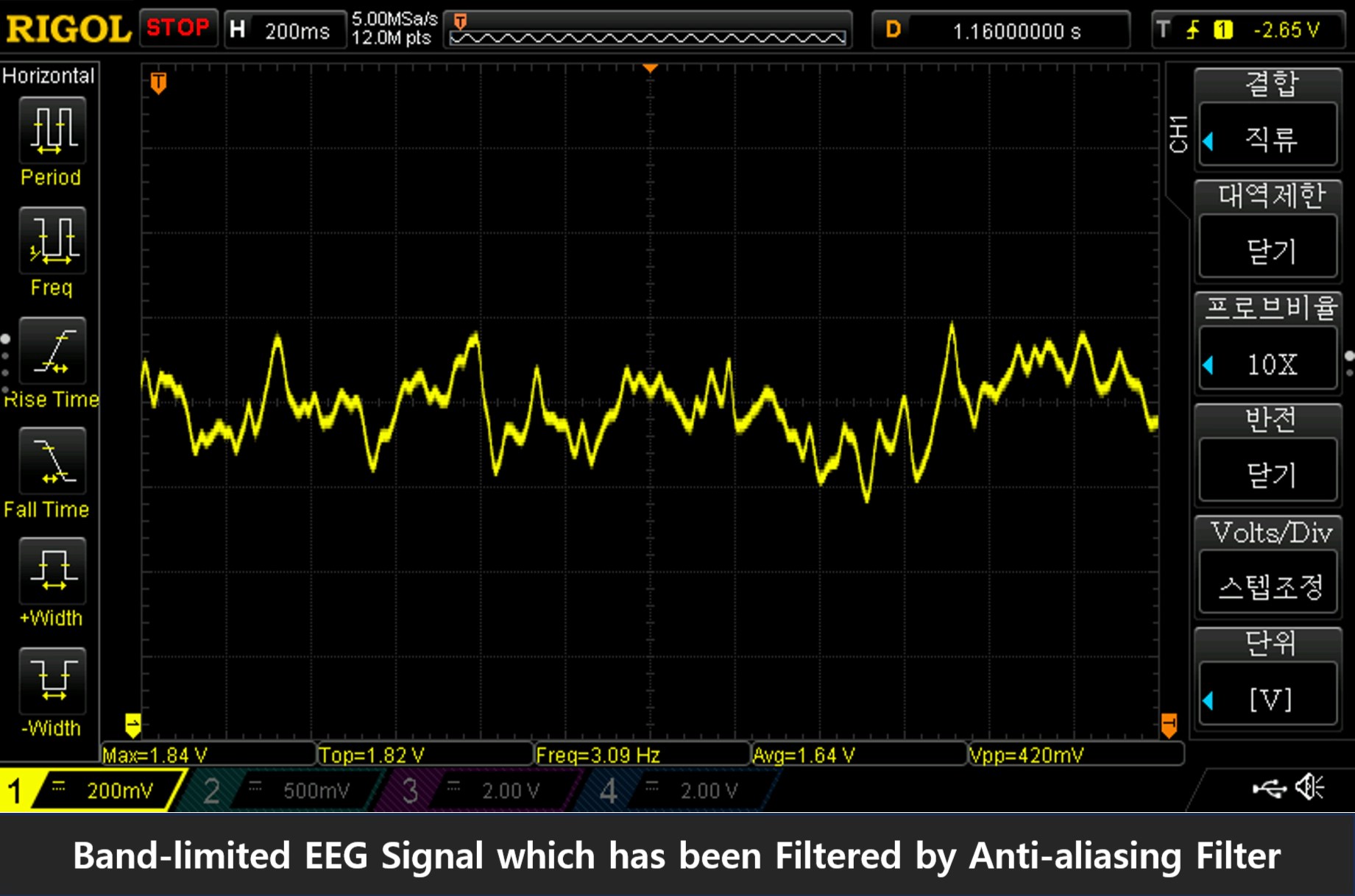

Raw EEG signal is Amplified and Low pass filtered by Anti-aliasing Filter, then it becomes a Band-limited Signal

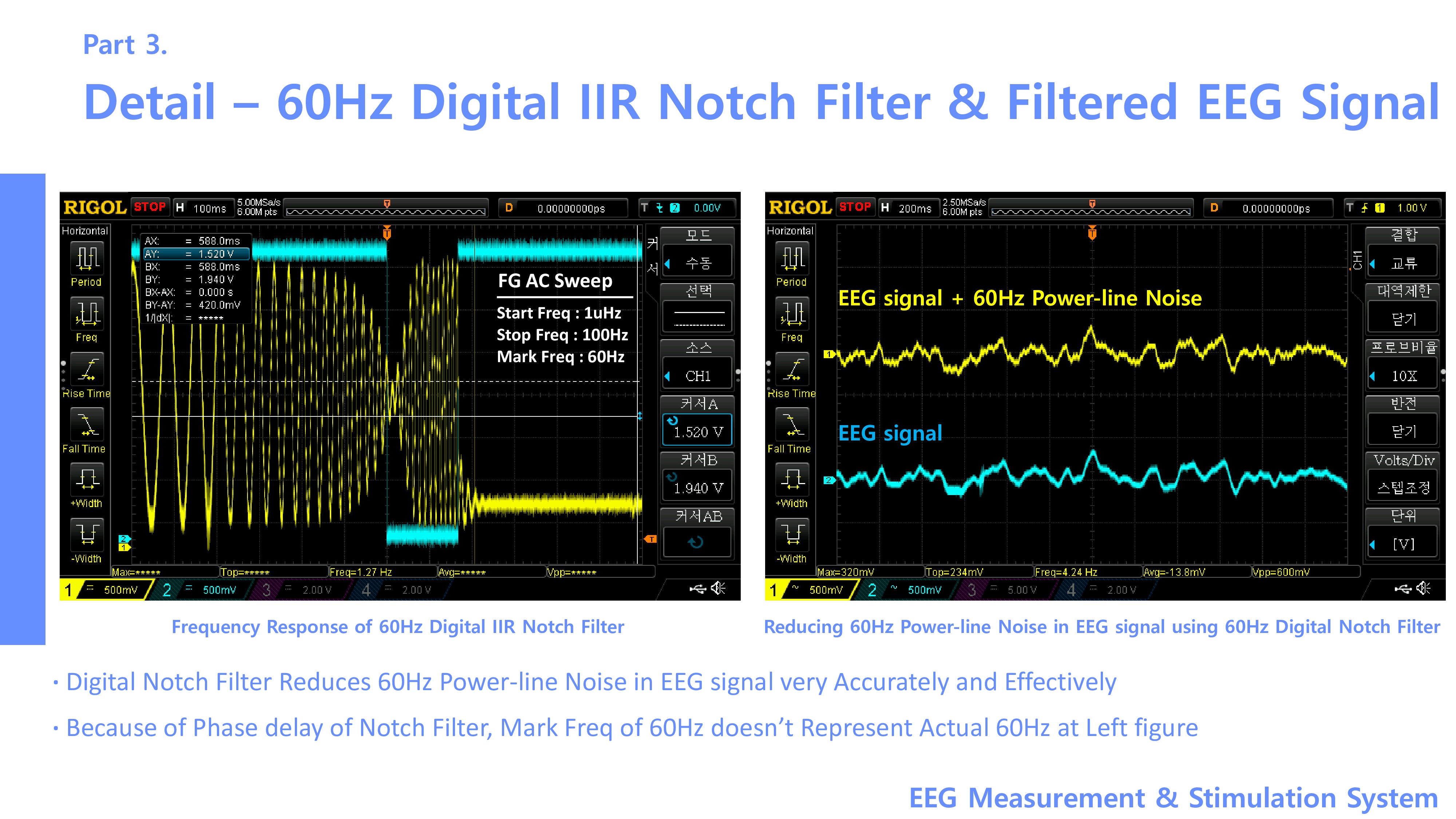

[2] 60Hz Digital IIR Notch Filter & Filtered EEG Signal

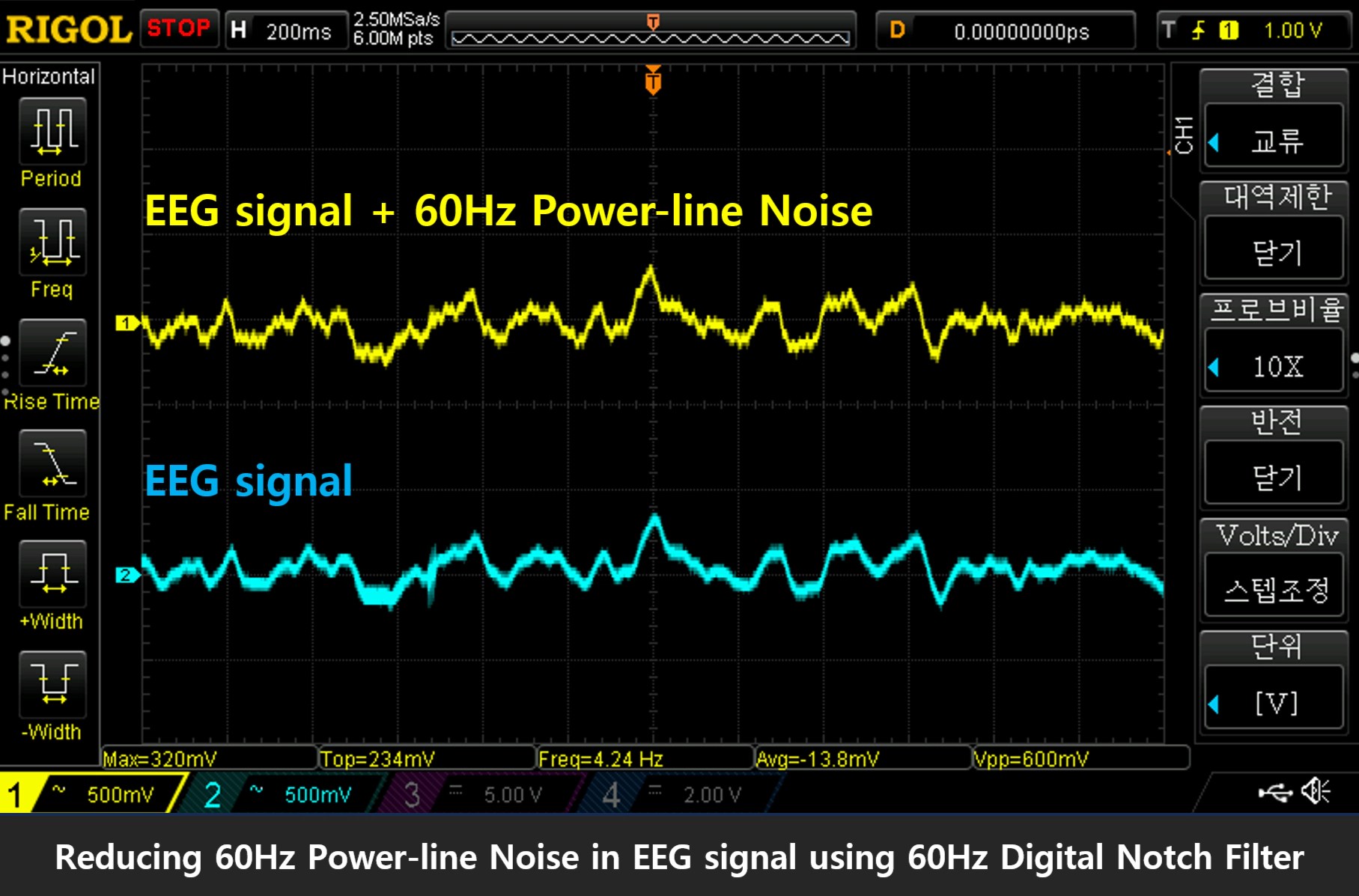

Digital Notch Filter Reduces 60Hz Power-line Noise in EEG signal very Accurately and Effectively

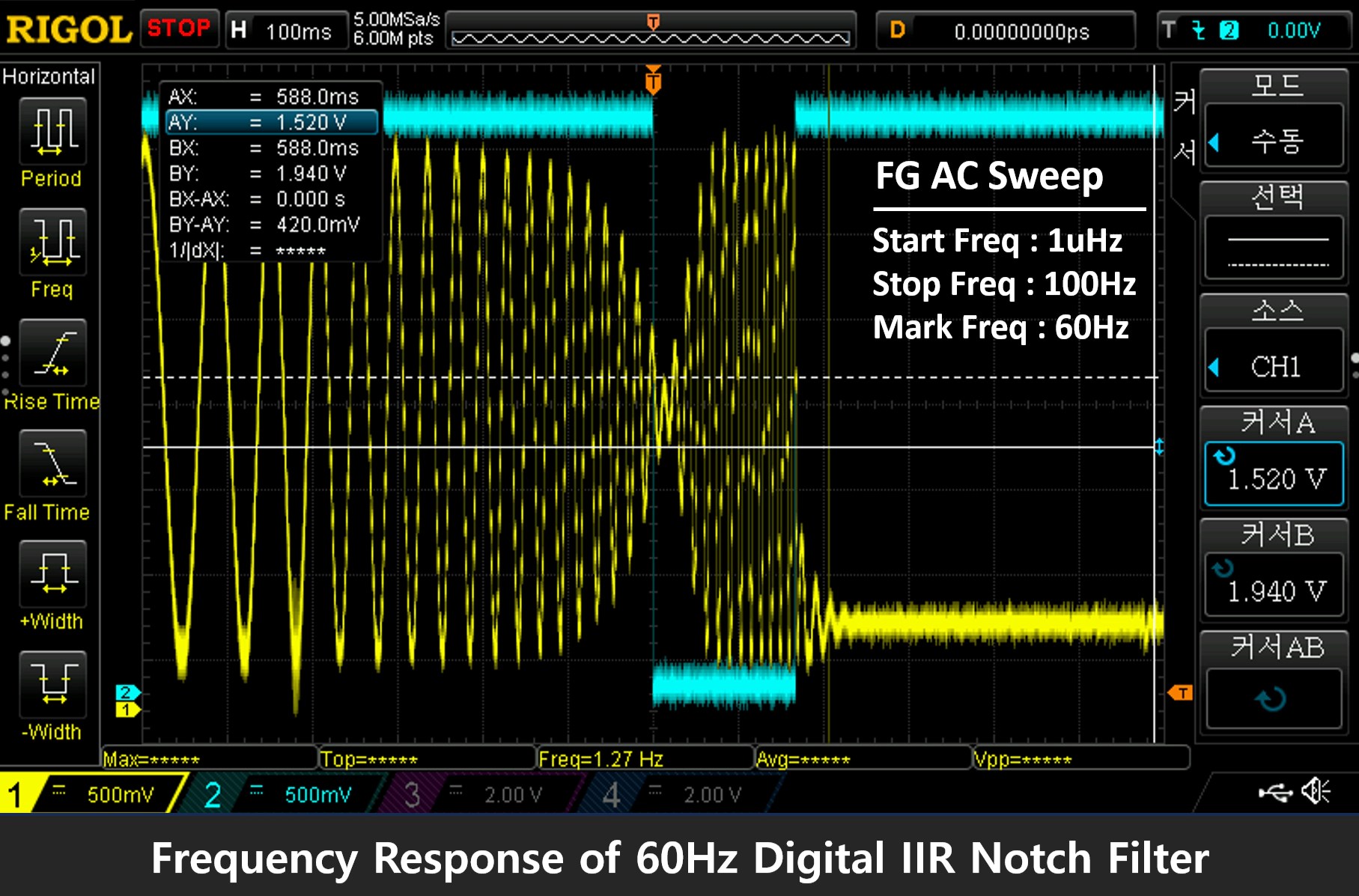

Because of Phase delay of Notch Filter, Mark Freq of 60Hz doesn’t Represent Actual 60Hz at 1st figure
[3] Bi-phasic Stimulation Pulse
Seizure symptoms can be captured by Frequency Analysis(FFT operation) of EEG signal

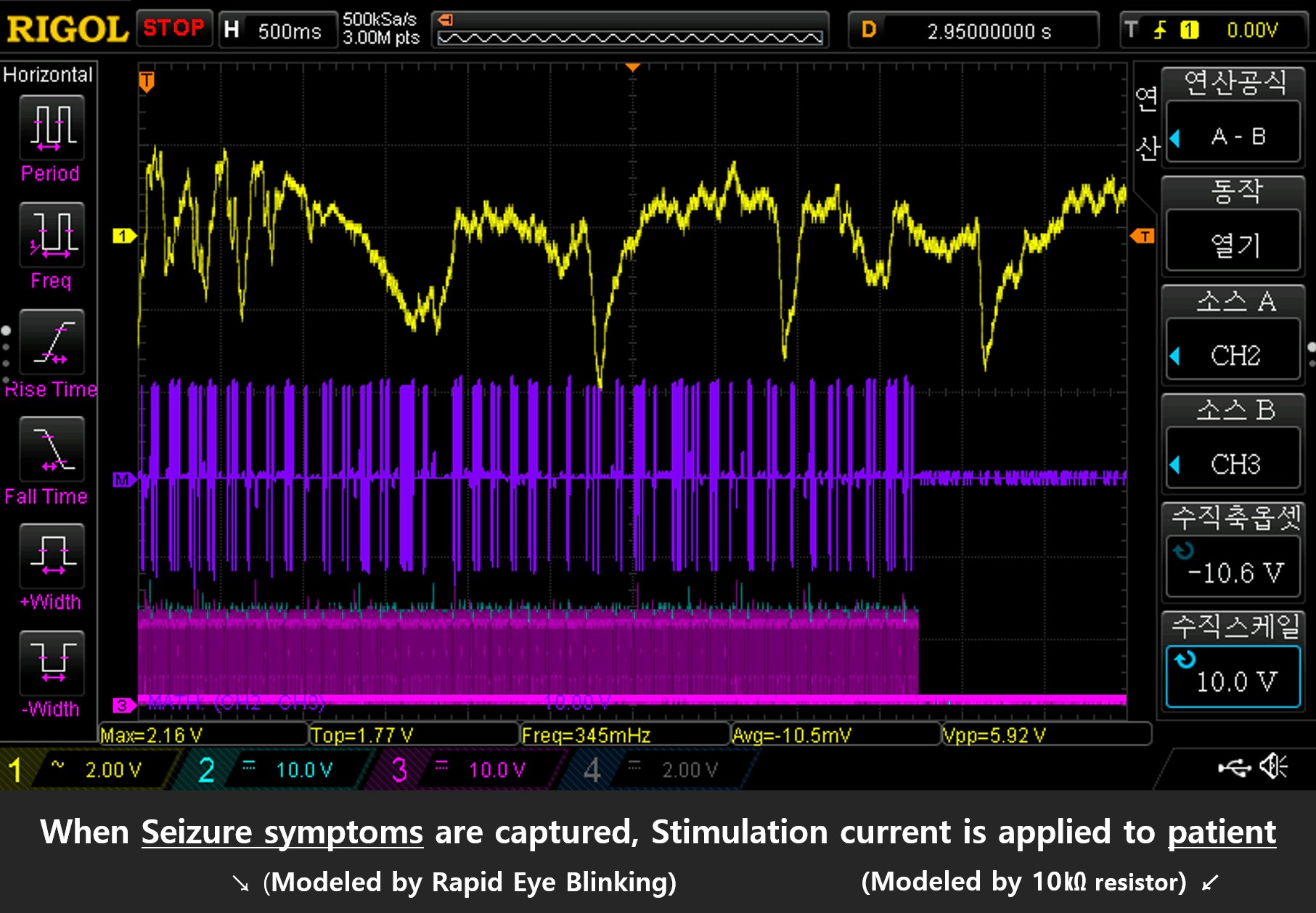

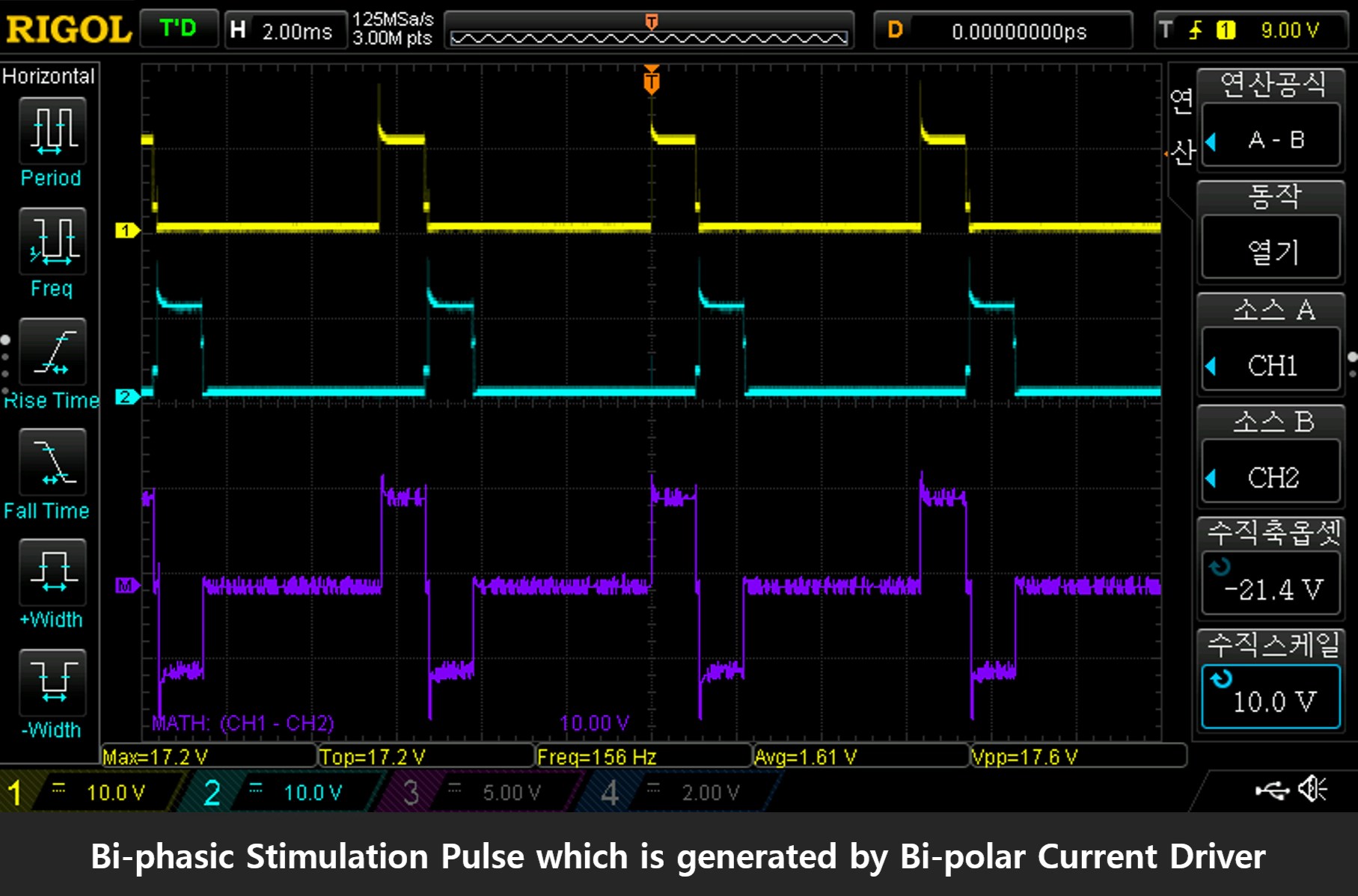

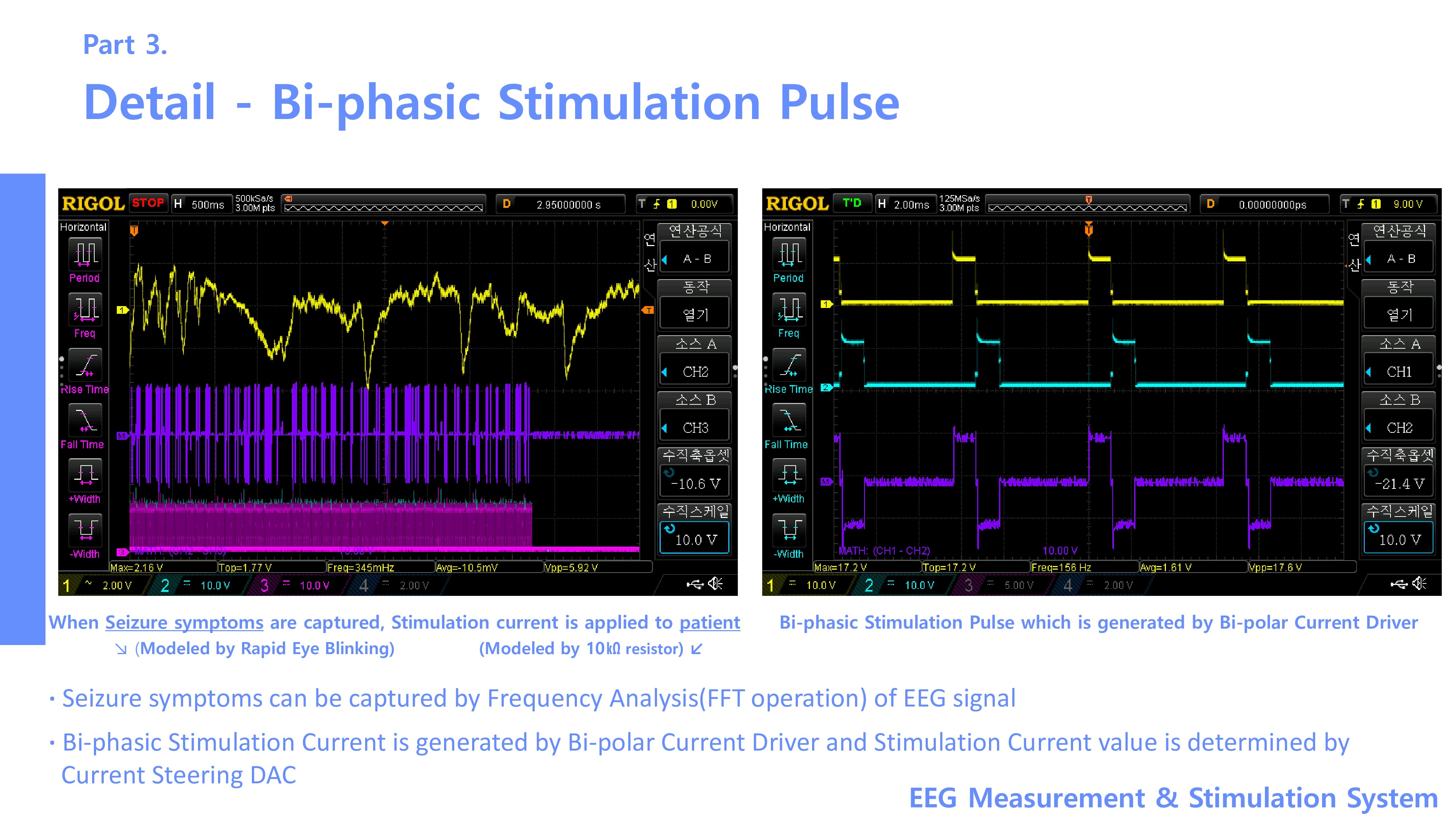

Bi-phasic Stimulation Current is generated by Bi-polar Current Driver and Stimulation Current value is determined by Current Steering DAC

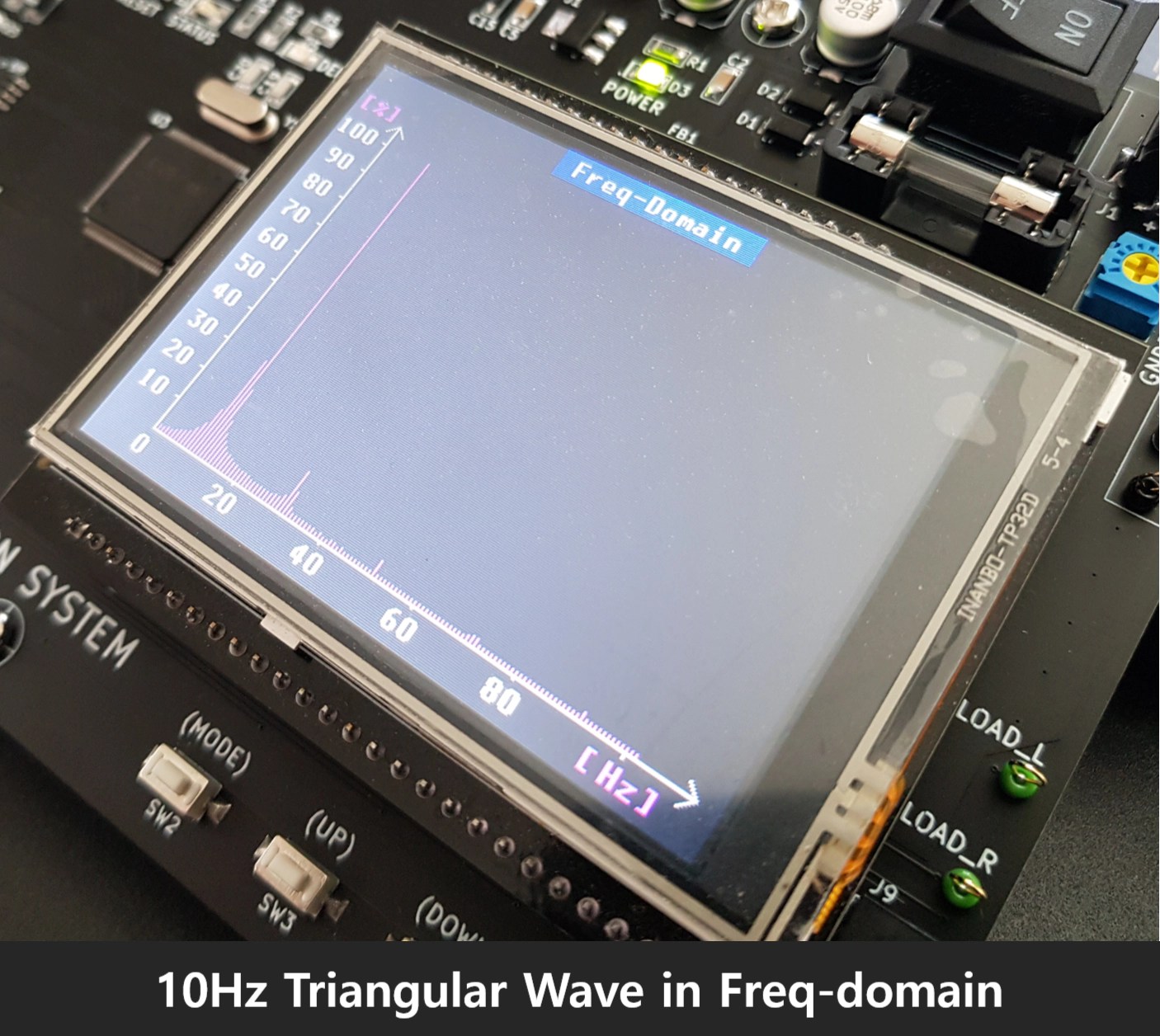

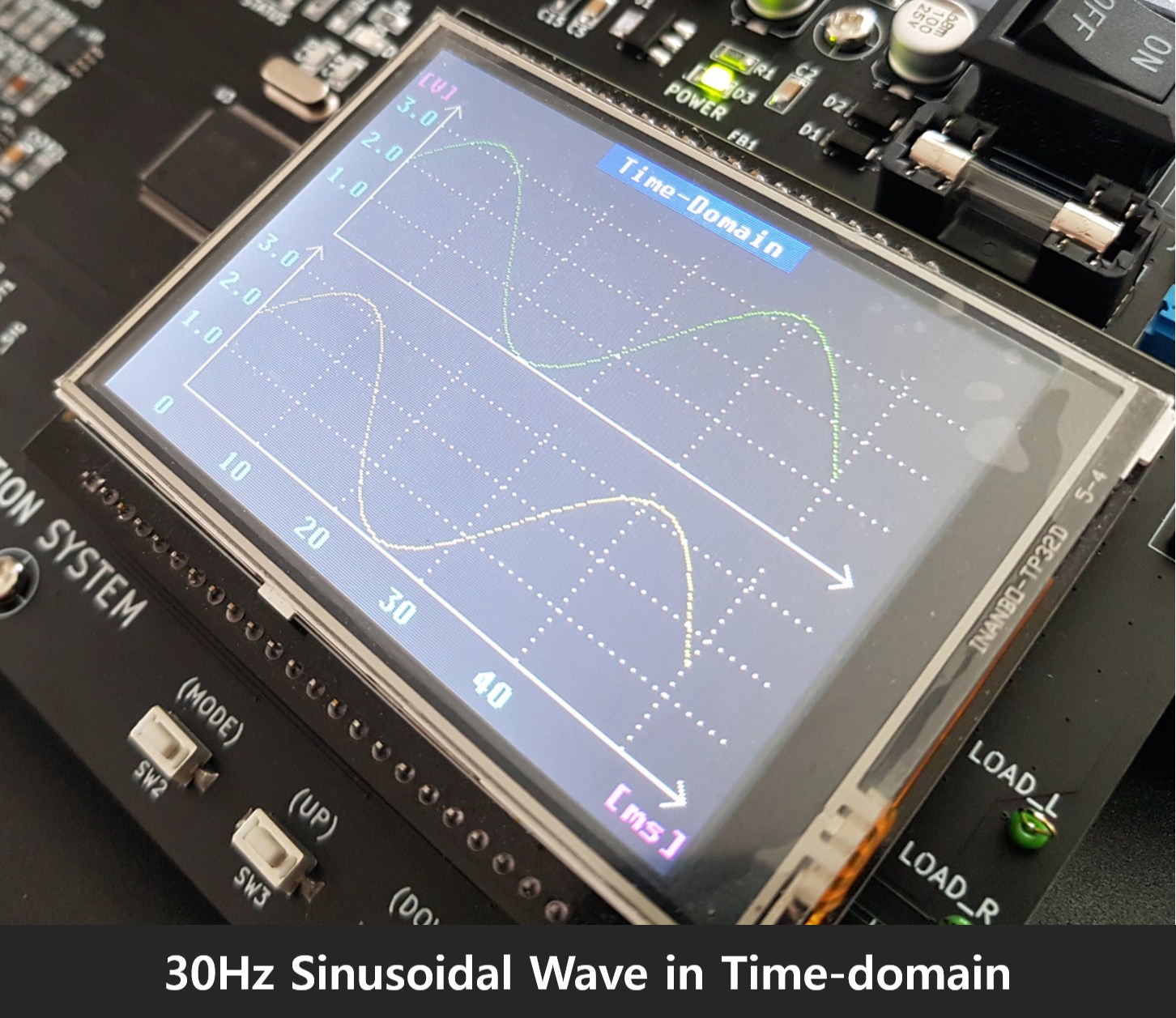

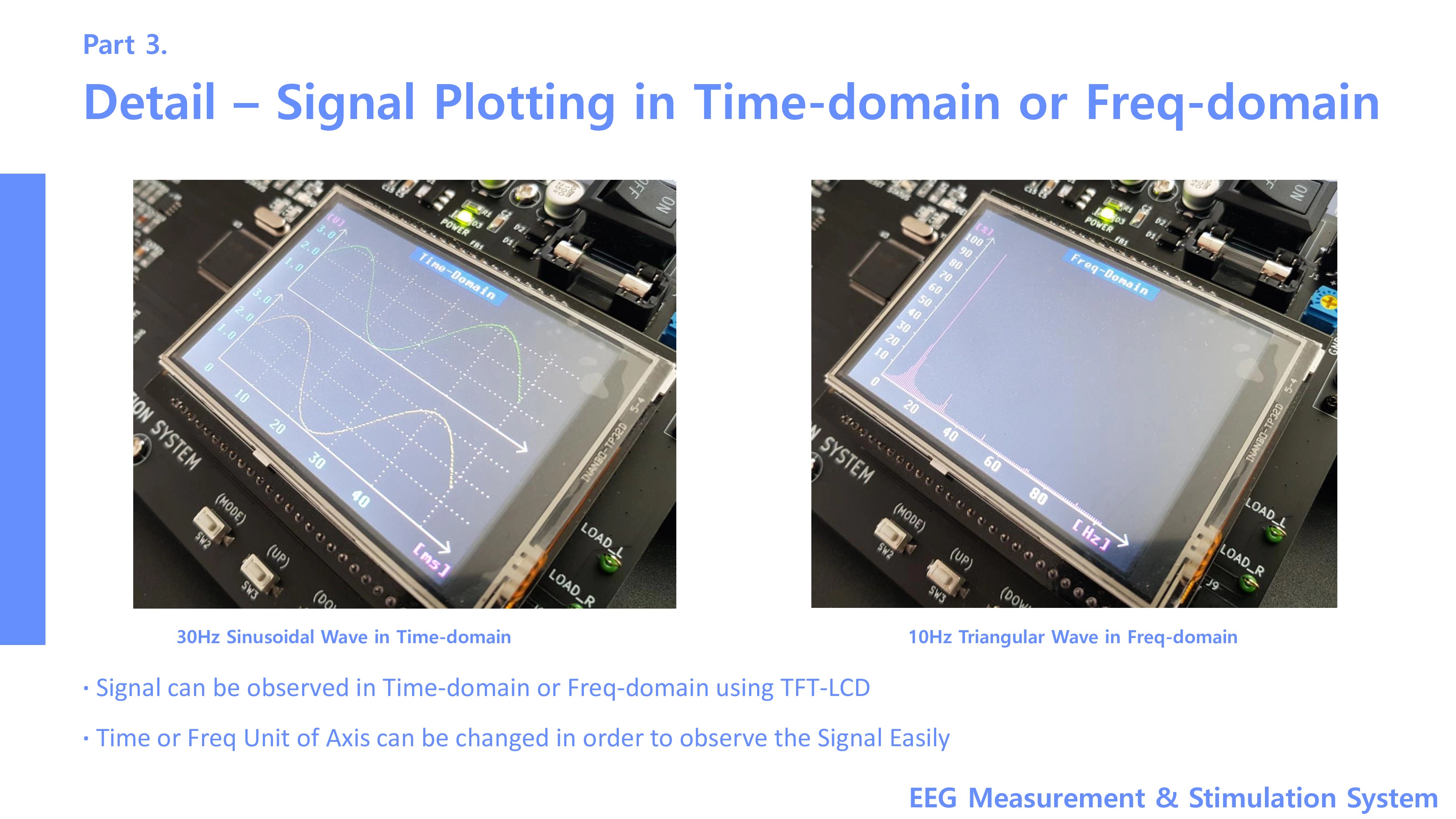

[4] Signal Plotting in Time-domain or Freq-domain

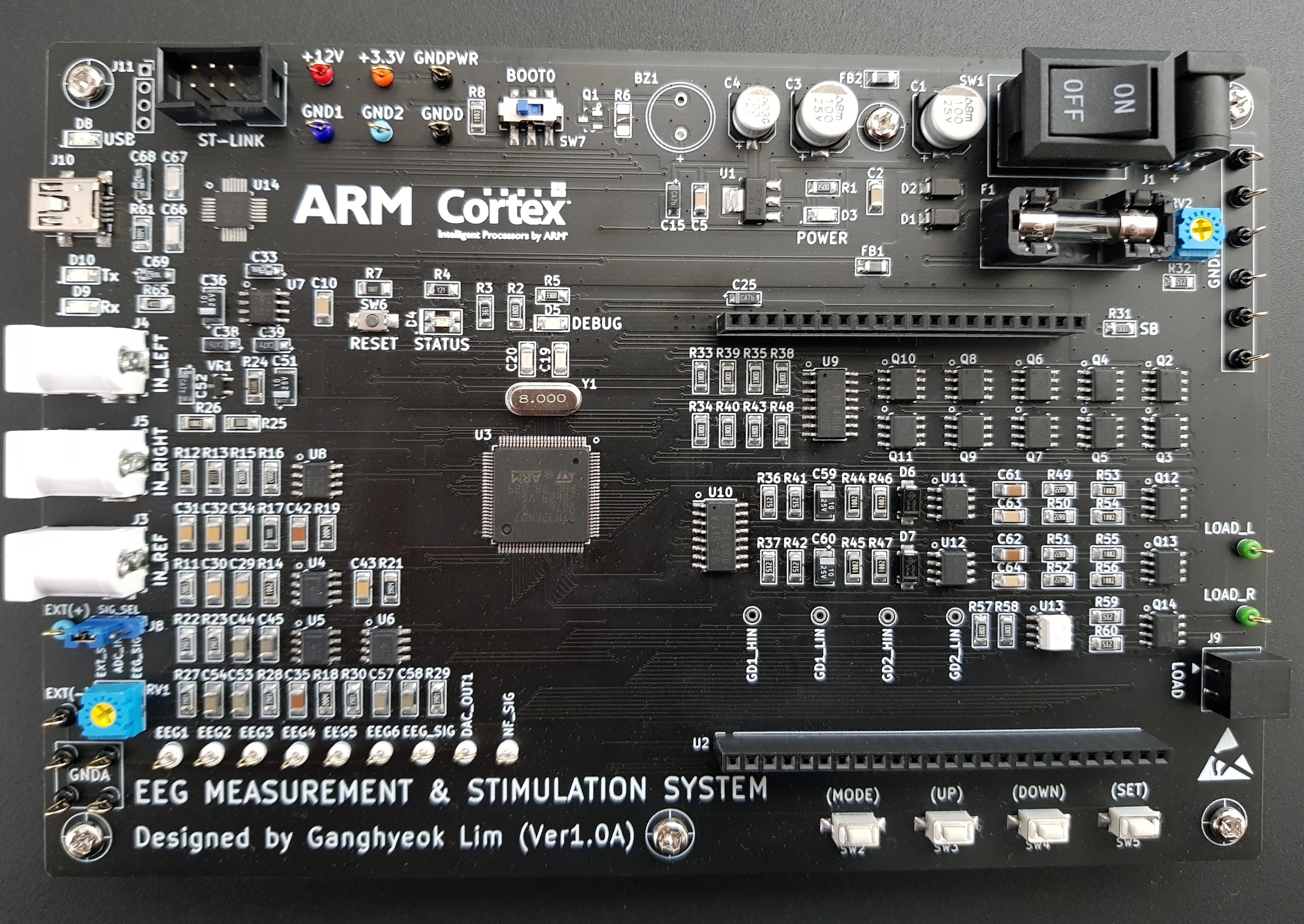

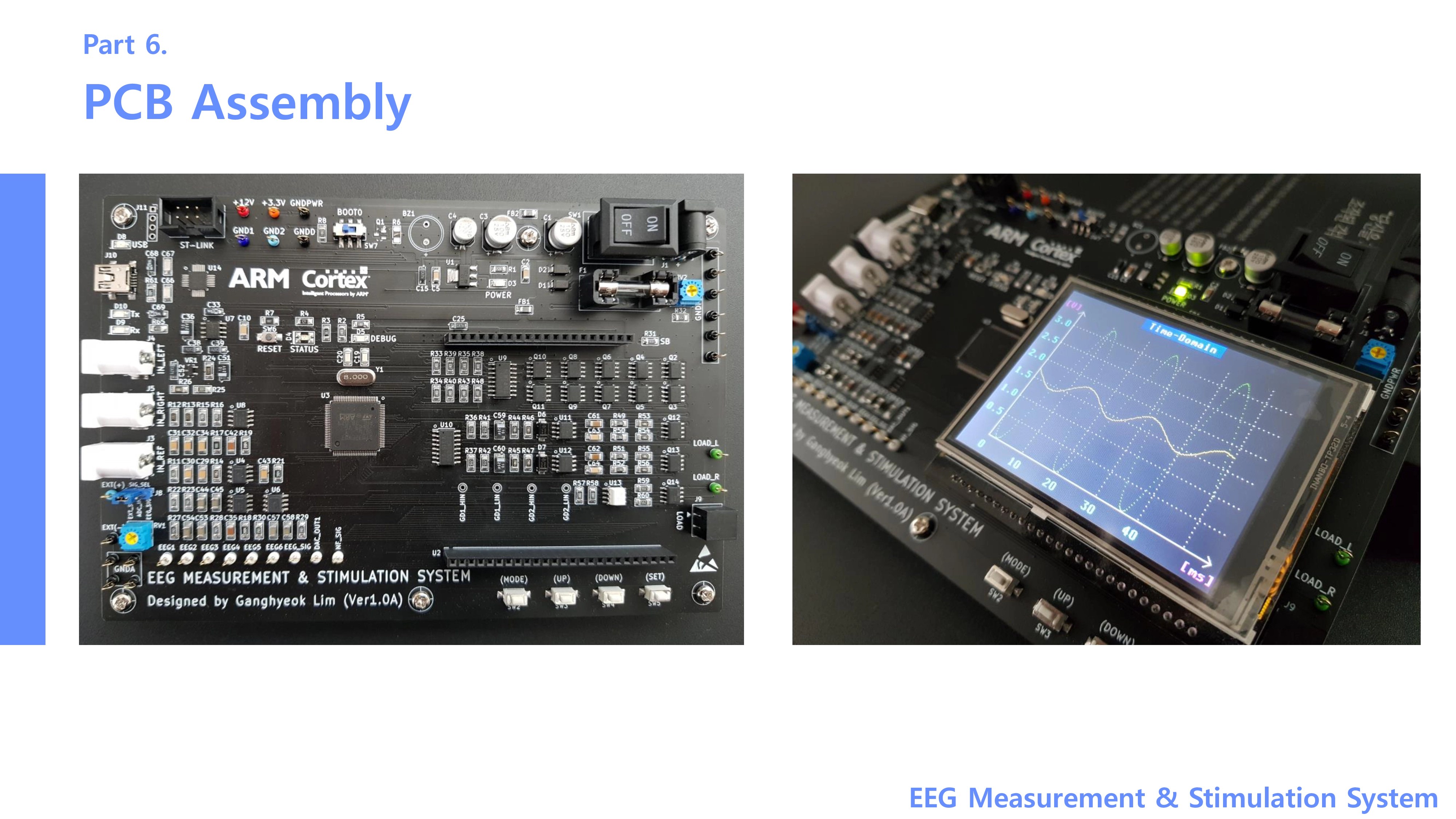

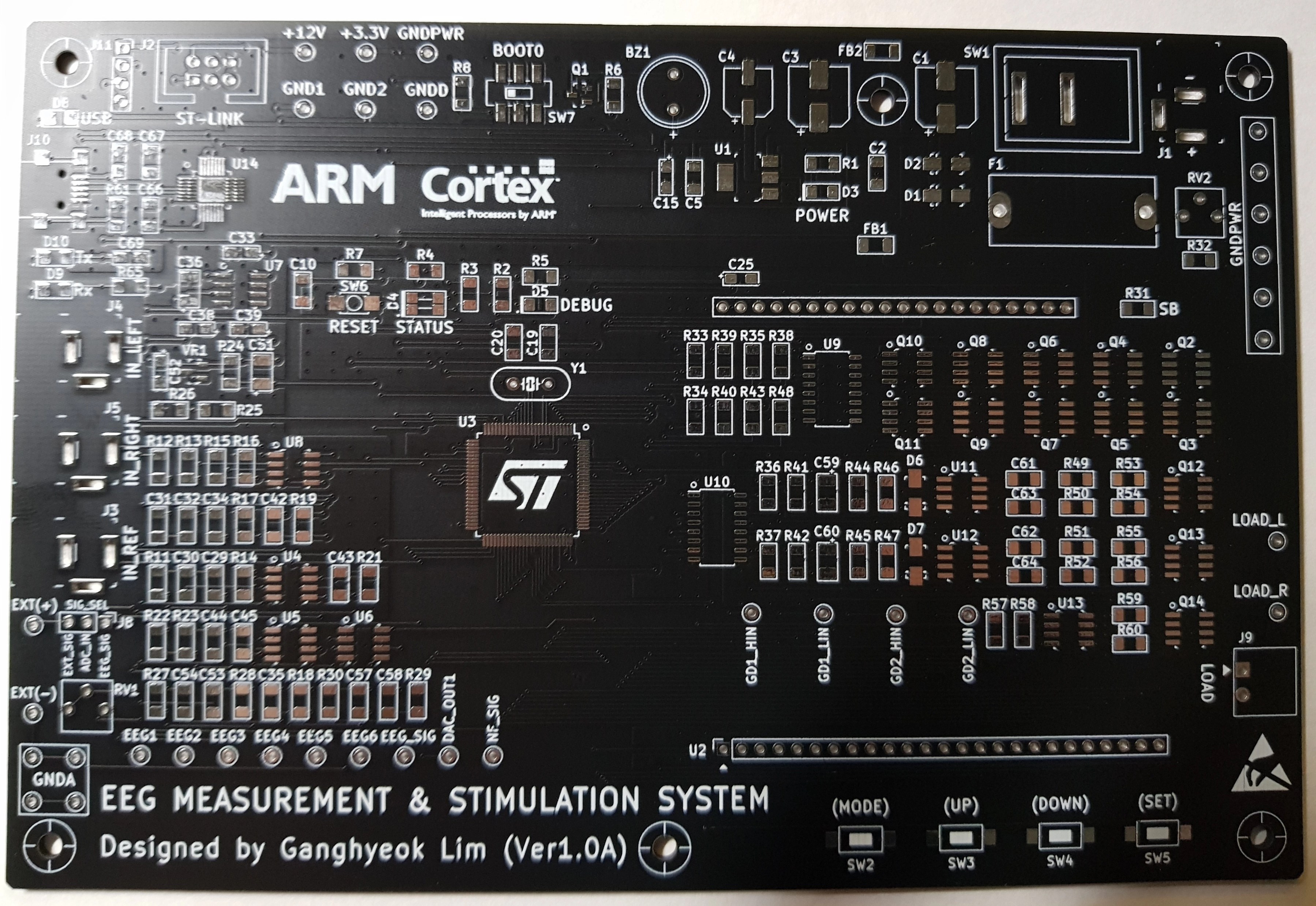

5. Bare PCB & PCBA of EEG Measurement &
Stimulation System
6. Verification of EEG Measurement & Stimulation System
